Flat Cable Separatos

SEF 1 | SEF 3

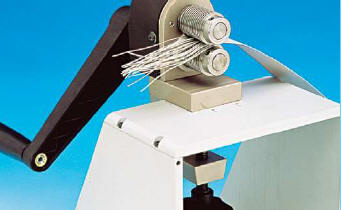

SEF 1
FLAT CABLE SEPARATOR BENCH
MANUAL VERSION

The model SEF 1 is designed for separating wires of flat cables. (Flat Ribbon Cable)
This version is a "bench" manual assembly suitable for separating edges of flat cables having maximum width of 33mm.
Two different pitches of separation can be supplied:

1,27 mm (the wires are individually separated
(Code 73.OL01)

2,54 mm (the wires are separated in couples
(Code 73.OL02)

Two versions are available:

SEF-1/1 (73.OL01)

PITCH 1,27mm (.05”)
Wires are individually separated

SEF-1/2 (73.OL02)

PITCH .2,54mm (.1”)
Wires are separated in couples

Specs SEF1 PDF

top

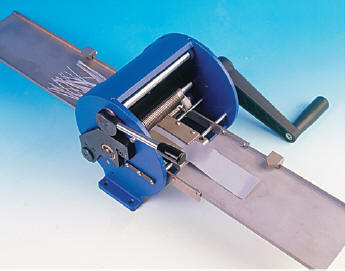

SEF 3
FLAT CABLE SEPARATOR MACHINE
MANUAL OR MOTORIZED VERSION

The model SEF-3 is designed for separating wires of flat cables. (Flat Ribbon Cable)
This version is a "bench" manual machine suitable for separating edges of flat cables having maximum width of 66 mm. Motor drive unit code 61.OL01 (110 volt) code 61.OL02 (220 volt) is available to motorized this unit.

Two different pitches of separation can be supplied:
1,27 mm (the wires are individually separated
(Code 71.OL01)

2,54 mm (the wires are separated by couples
(Code 71.OL02)

Two versions are available:

SEF-3/1 (71.OL01)

PITCH 1,27mm (.05”)
Wires are individually separated

SEF-3/2 (71.OL02)

PITCH .2,54mm (.1”)
Wires are separated in couples

Specs SEF1 PDF
